Spring Stops

spring stops

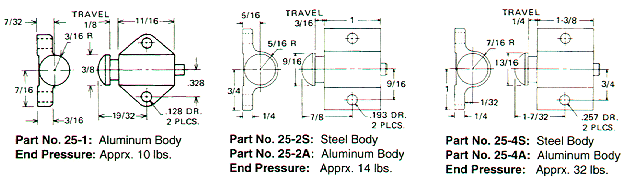

spring stops diagram

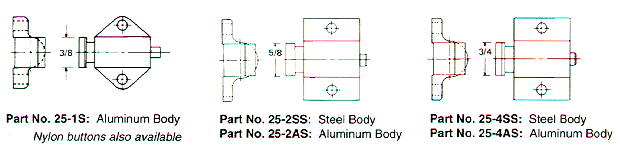

second spring stops diagram



Techni-Tool spring Stops are used in the locating of parts in jigs and fixtures, particularly where fixture walls are not available. Spring Stops ensure accurate controlled end pressure which makes for quick, convenient loading and unloading. The relieved base seats perfectly and eliminates wobble. The base has drilled, jigged holes for firm mounting, easy alignment and installation.

Plunger is hardened and ground. End pressure tabulated with the plunger end half-way telescoped.

Available in square and round head styles with steel or aluminum bodies. Nylon buttons are available.
